Damper Filter

Cobetter Damper Filter Series have been widely used in digital ink jet printers. These filters can reduce printer system back fiush pressure when printers operate in positive pressure. They can also prevent recycled ink from damaging printer precision hardware parts. The damper filter, itself, has enough volume that it can be used as a foam breaker filter to reserve inks and effectively protect the electron magnetic valve.

Optional Volume Size

Multiple Capacities are available. All main filters can custom to be damper filter.

Non-Fiber Releasing Design

Thermal-bonded fiber polypropylene forms a stable structure, and ensure no fiber releasing.

Thermal Welding Technology

No adhesive resins and ensure capsule filter excellent pressure endurance.

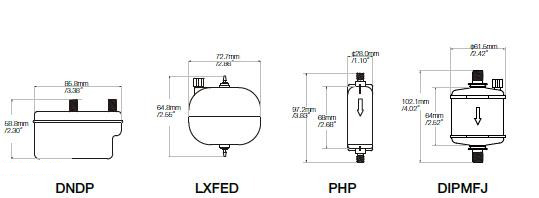

Drawing



Filter Volume140 mL13 mL25 mL150 mL
Diameter¢ 85.8 mm¢ 72.7 mm¢ 28 mm¢61.5mm
Length58.8 mm64.8 mm97.2 mm102.1mm
Inlet/Outlet1/8"Jaco Luer Lock
1/4"Jaco
Vent/Drain\                                      \                                          \                                   luerlock
Filter Media\
Cage/Core/Shell/End CapPolypropylene
Max. Allowable Pressure101PSI / 7bar
Max. Allowable Temperature50°C / 120°F

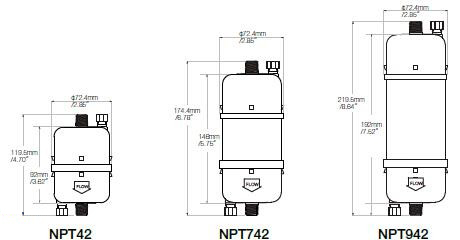

ItemNPT42NPT742NPT942
Diameter¢72.4mm¢72.4mm¢72.4mm
Length119.5 mm174.4 mm219.5 mm
Filter Volume300 mL500mL750ml
Vent/Drain1/8"NPT
Inlet/Outlet1/4"NPT
Cage/Core/Shell/End CapPolypropylene
Max. Allowable Pressure101PSI / 7bar
Max. Allowable Temperature50°C / 120°F



300 mL
