Home | Industries | General Industry| GlassFlow Filter Cartridges

GlassFlow Filter Cartridges

Glass Fiber Media · Pre-Filtration

Cobetter GlassFlow Filter Cartridges are made of super fine glass fiber media with a pre-layer constructed of polypropylene for pigment-based ink and paste and dye-based dispersed inks and paste for use during pre-filtration and final filtration. Glass Fiber Media has an inherently absorptive characteristic that enhances filter retention capability

Features and Benefits

Super fine glass micro fiber media which provides the benefit of low initial pressure and high removal efficiency (>98%)
Stiff structure of glass micro fiber media provides high flow rate.
Built-in polypropylene pre-filtration layer
Glass fiber media has high dirt holding and inherently adsorptive effect which features its gel removal ability
Extremely good chemical compatibility

Material of Construction

Filter Medium	GlassMicrofiber
Support Layer	Polypropylene
Core/Cage/End Caps	Polypropylene
Internal Adaptor Reinforcing Ring	Please refer to ordering information

Operating Conditions

Maximum Temperature	80°C
Max.Differential Pressure	4 bar / 21°C 2.1bar / 80°C
Steam Sterilization (Autoclave)	null
Inline Steam Sterilization	null
Hot Water Sterilization	null

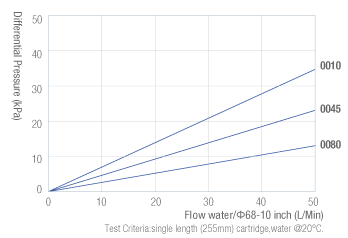

Flow Rate Characteristics

Retention Characteristic

Pore size	LGFP 0.2	LGFP 0.45	LGFP 1.0	LGFP 5.0	LGFP 6.0
≥0.2μm	97.94%	92.76%	\	\	\
≥0.5μm	98.99%	97.87%	88.59%	\	\
≥1.0μm	100%	100%	97.87%	78.86%	\
≥2.0μm	100%	100%	99.99%	89.45%	74.32%
≥5.0μm	100%	100%	100%	97.99%	95.65%

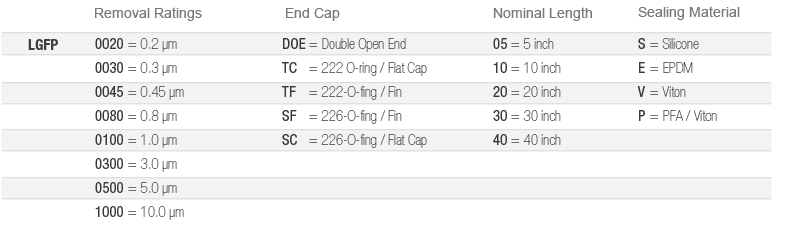

Ordering Information
