Ultrapore Filter Cartridges

GlassMicro Fiber · Final Filtration

Cobetter Ultrapore Filter Cartridges are used as a final filtration for pigment-based inks, dye-based inks, and ceramic ink jet inks. PP Nano Fibers outer layers provide high flow rates and multi-layer of super fine glass micro fiber contribute to high efficiency.



Features and Benefits

·  Optimized design provides high dirt holding capacity and high removal efficiency (>99.9%).
·  Outer layers use PP nano fibers while inner layers use multiple ayers of super fine glass

   micro fibers. This feature allows a high emoval efficiency of particles. In addtion, it has an

   extremely long life time while maintaining high removal efficiency for small particle removal.
·  Unique heat solidification technology bonds fibers together, thus; preventing fiber release.
·  Excellent gel retention capability.
·  PP+GF Media yields excellent compatibility with most ink chemistries.


Material of Construction

Filter MediumNano Fiber Media (PP+GF)
Support LayerPolypropylene / Nylon Mesh
Core/Cage/End CapsPolypropylene
O-RingPlease refer to ordering information



Operating Conditions

Maximum Temperature80°C
Max.Differential Pressure
 		4.0 bar / 21°C
2.1 bar / 80°C
Steam Sterilization (Autoclave)null
Inline Steam Sterilizationnull
Hot Water Sterilizationnull

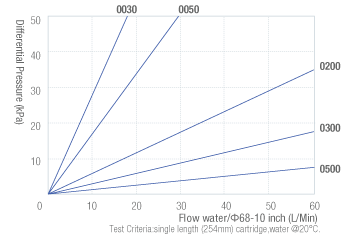

Flow Rate Characteristics


Retention Characteristic

Pore sizeSHP 0.3SHP 0.5SHP 1.0SHP 3.0SHP 5.0
≥1μm98.38%96.65%\\\
≥2μm99.99%99.91%92.75%\\
≥5μm100%99.99%99.98%\\
≥2μm100%100%99.99%85.73%68.35%
≥5μm100%100%100%99.92%79.47%
≥2μm100%100%100%100%99.90%

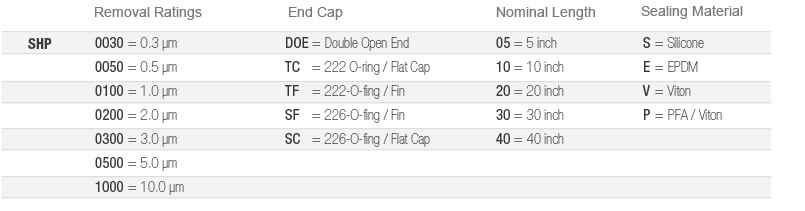

Ordering Information
