Stepped HB Capsule

Cobetter WM Series and STBT series capsule filters are designed for the needs of digital inkjet formulation labs and small ink batch production process.

Various sizes options meet all your requirements.



Feature

· Optional Media
· Compact Capsule Filter Design
· All Polypropylene Construction
· Opaque UV Resistant Housing Design Available

Benefit

· Satisfying different ink requirements
· A compact form to minimize internal ink volume and waster, and an anti-roll design to reduce ink spillage
· Suitable for use with most inkjet ink formulations
· Black housing protects againt UV light and prevents ink from curing inside the filter




Specification













92WMWM195WM
DiameterØ70.0mmØ65.1mmØ66.0mm
Length89.8mm139.1mm196.3mm
Inlet/Outlet6-9mm Stepped hose barb
Vent/Drain1/8"NPT
Filtration Area200 cm²
400 cm²700 cm²
Filter MediaPleated Polypropylene

Cage/ Core/

Shell/ End Cap

Polypropylene

Max. Allowable

Pressure

101PSI / 7bar

Max. Allowable

Temperature

50°C / 120°F









STBT1STBT2
DiameterØ74.2mmØ74.2mm
Length138.0mm188.3mm
Inlet/Outlet12mm Stepped hose barb12mm Stepped hose barb
Vent/Drain1/8"NPT
Filtration Area432 cm²650 cm²
Filter MediaPleated Polypropylene

Cage/ Core/

Shell/ End Cap

Polypropylene

Max. Allowable

Pressure

101PSI / 7bar

Max. Allowable

Temperature

50°C / 120°F

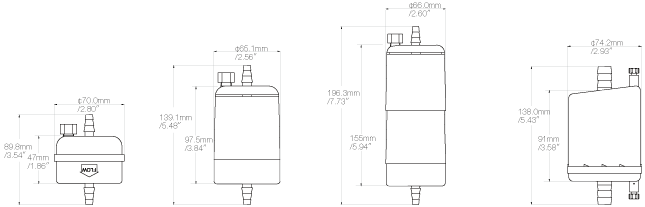

Drawing


                                                                  WM STBT.png



Item92WMWM195WMNPT742
Diameter¢70mm¢65.1mm¢66.0mm¢72.2mm
Length89.8mm139.1mm196.3mm138.0mm
Inlet/Outlet6-9mm
Stepped hose barb		6-9mm
Stepped hose barb		6-9mm
Stepped hose barb		12mm
Stepped hose barb
Vent/Drain220 cm1/8"NPT1/8"NPT1/8"NPT
Filter Area1/8"NPT


Filter MediaPleated Polypropylene
Cage/Core/Shell/End CapPolypropylene
Max. Allowable Pressure101PSI / 7bar
Max. Allowable Temperature50°C / 120°F


                                                                                         WM STBT2.png

Item
STBT2
Diameter¢74.2mm
Length188.3mm
Inlet/Outlet12mm Stepped hose barb
Vent/Drain1/8"NPT



Ordering Information

Series

ShellFilter Media  / Removal Rating Industry

92WM

WM

195WM

STBT1

STBT2




- =Standard
     Polypropylene
B=Black

     polypropylene


INKPP

0200 = 2.0μm

0500 = 5.0μm

1000 = 10.0μm

2000 = 20.0μm

5000 = 50.0μm


APBT

0500 = 5.0μm

1000 = 10.0μm

2000 = 20.0μm


C = Chemical

INKPPC

0500 = 5.0μm

1000 = 10.0μm

2000 = 20.0μm


APSP

0500 = 5.0μm

1000 = 10.0μm

2000 = 20.0μm

INKPPJ

0500 = 5.0μm

1000 = 10.0μm

2000 = 20.0μm


PFIP

0500 = 5.0μm

1000 = 10.0μm

2000 = 20.0μm
