BevPure Plus Filter Cartridges

Double-layer PES Membrane · Sterilizing Grade

BevPure® Plus Filter Cartridges have been established as a new generation of PES membranes in sterilizing grade filtration.  The unique double-layer PES membrane provides excellent microbiological retention with economical filtration.  BPP Filter Cartridges can be steam or hot water sterilized frequently for longer service life. They can be used in a wide range of food and beverage applications which demand the highest level of microbiological process safety.


Features and Benefits





Materials of Construction

Filter Medium

Double-Layer PES Membrane

(Asymmetric PES + Symmetric PES)

Cage / SupportPolypropylene
Core / End CapsPolypropylene



Operating Conditions

Max. Temperature80°C
Max. Differential Pressure

4.0 bar / 21°C (forward flow)

2.4 bar / 90°C (forward flow)
2.0 bar / 21°C (forward flow)

Bubble Point (0.45μm)

>0.16 MPa (water)

Diffusion Flow (0.45μm)

≤0.45 ml/min/30" @ 1200 mbar (water)

Steam Sterilization
(Saturated Steam)

≥200 cycles

(135°C/30 min @ Max.Differential Pressure of 0.3 bar)

Hot Water Sterilization85°C/30 min @ Max. Differential Pressure of 2 bar
Cleaning Solution2% NaOH Solution @ ≤65°C
Effective Filtration Area0.58m² / 10 inch

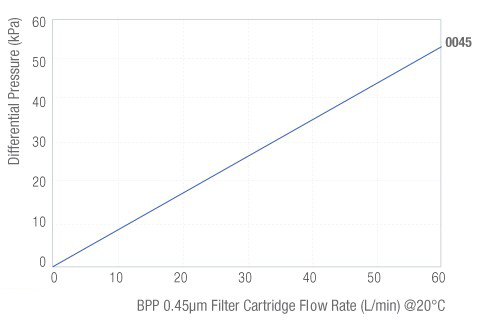

Flow Rate Characteristics




Reliable Microbiological Control

Lot,NoS/N  BP Limit

Measured

BP

DF Limit

Measured

DF

LRV
8081001      365>0.22Mpa0.28

<40ml/min@1500mbr

28> 6
80810013770.28 28> 6
80810016500.28 29> 6
80820019320.27 28> 6
80820015810.27 27> 6
80820015960.27 28> 6
80830017480.28 28> 6
80830017560.28 29> 6
80830012680.28 28> 6





Ordering Information

    Removal Ratings   End CapNominal LengthSeal Material  -F
BPP      0045=0.45μmDOE=Double Open End05= 5"S=Slilicone

[Ф69]
HTC=222 O-ring/Flat (PBT Insert)10= 10"E=EPDM



HTF=222 O-ring/Fin (PBT Insert)20= 20"V=Viton



HSF=226 O-ring/Fin (PBT Insert)30= 30"




SSF=226 O-ring/Fin  (SS Insert)40= 40"




SSC=226 O-ring/Flat (SS Insert)





STF=222 O-ring/Fin (SS Insert, 3 Tabs)
