TefloGas Filter Cartridges

Hydrophobic PTFE Membrane · Sterilizing Grade

TefloGas® Filter Cartridges are composed of a hydrophobic PTFE membrane and a specially designed unique thermal-resistant polypropylene core. They are characterized by a high filtration area, non-metallic ion release, and are easy to clean. Each filter is individually Integrity Tested to ensure microbiological safety.  They are highly recommended for all air and gas sterilizing grade applications in food and beverage, e.g. fermentation processes.


Features and Benefits





Materials of Construction

Filter MediumHydrophobic PTFE
Cage / SupportPolypropylene
Core / End CapsReinforced Polypropylene



Operating Conditions

Max. Temperature80°C
Max. Differential Pressure

5.0 bar / 21°C (forward flow)

2.4 bar / 80°C (forward flow)

Bubble Point

BP: >1100mbar, 0.01μm

Diffusion Flow

DF: <16 ml/min/10”@ 800mbar, 0.01μm

Steam Sterilization
(Saturated Steam)

≥400 cycles

(145°C/30min @ Max. Differential Pressure of 0.3bar)

Water Flow Test< 0.38 ml/min/10” @2500mbar, 0.01μm
Hot Water Sterilization121°C /30min up  to  150 cycles

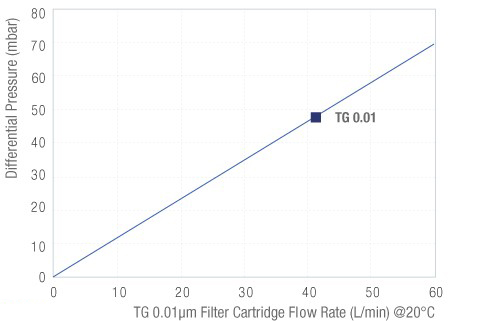

Operating Conditions

Air Flow Rate (m³/h)

Differential Pressure (mbar)
TG 0.01

10

9.5

20

19.8

30

30.9

40

42.8

5055.5
6069.0
Test Criteria:Single length (254mm) Cartridge,air @20°C.


Ordering Information

    Core Material  Removal Ratings   End CapNominal LengthSeal Material  -F
TG      P=Polypropylene0001=0.01μmDOE=Double Open End05= 5"S=Slilicone

[Ф71]None=SS3040022=0.22μmHTC=222 O-ring/Flat (PBT Insert)10= 10"E=EPDM




HTF=222 O-ring/Fin (PBT Insert)20= 20"V=Viton




HSF=226 O-ring/Fin (PBT Insert)30= 30"





SSF=226 O-ring/Fin  (SS Insert)40= 40"





SSC=226 O-ring/Flat (SS Insert)






STF=222 O-ring/Fin (SS Insert, 3 Tabs)
